AXIS Foils Rear Wings - Speed

420, 380, 400F

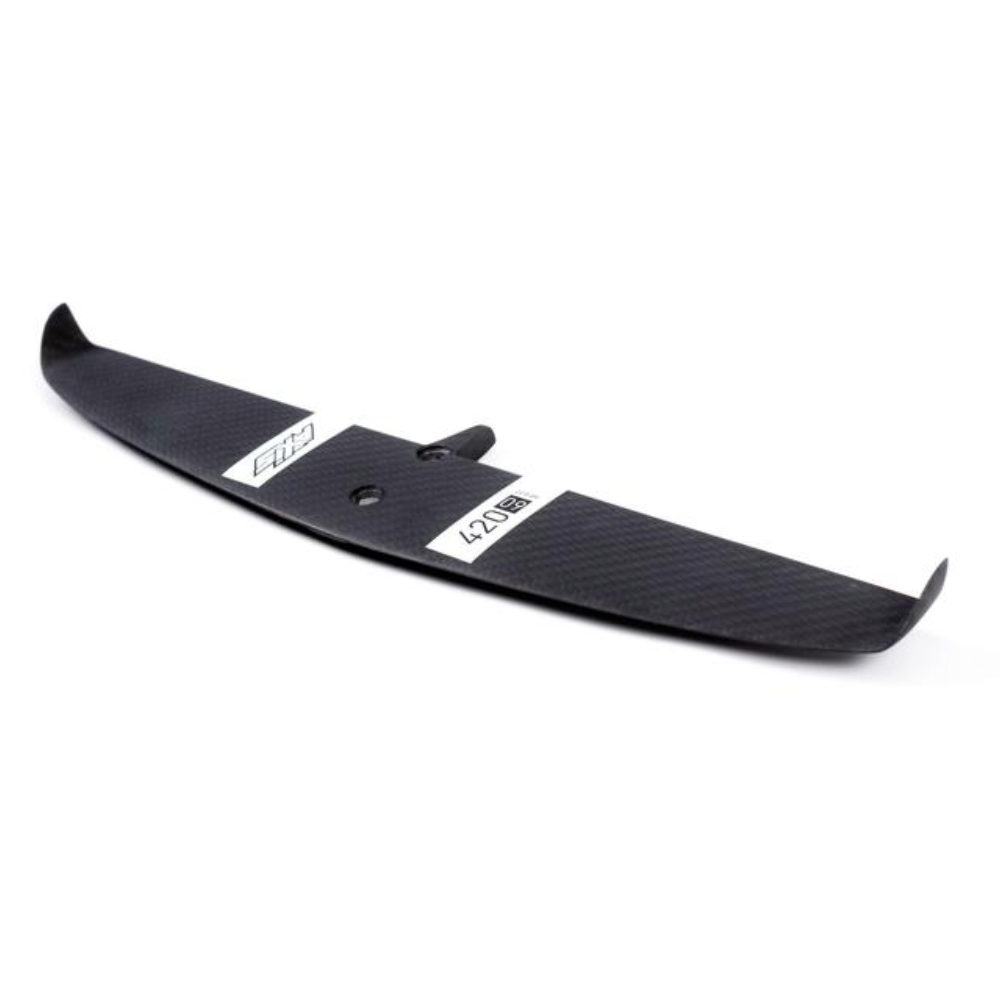

420

WINGSPAN: 420 mm / 16.54 in  CHORD: 60 mm / 2.36 in ASPECT RATIO: 8.57 ACTUAL AREA : 212.63 cm² / 32.96 IN²  PROJECTED AREA: 205.76 cm² / 31.89 IN²  VOLUME: 76.95 cm³ / 4.70 IN³

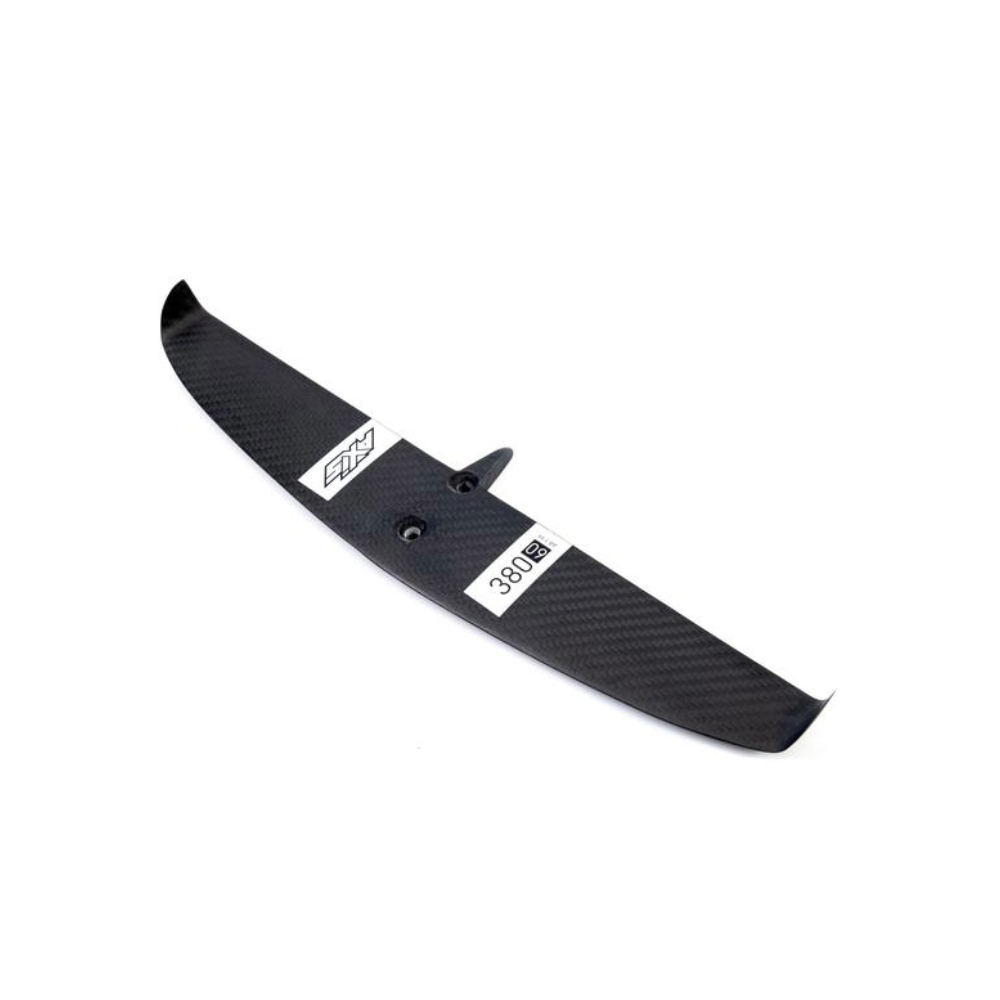

380

WINGSPAN: 380 mm / 14.96 in  CHORD: 60 mm / 2.36 in ASPECT RATIO: 7.99 ACTUAL AREA : 193.04 cm² / 29.92 IN²  PROJECTED AREA: 180.62 cm² / 28 IN²  VOLUME: 69.11 cm³ / 4.22 IN³

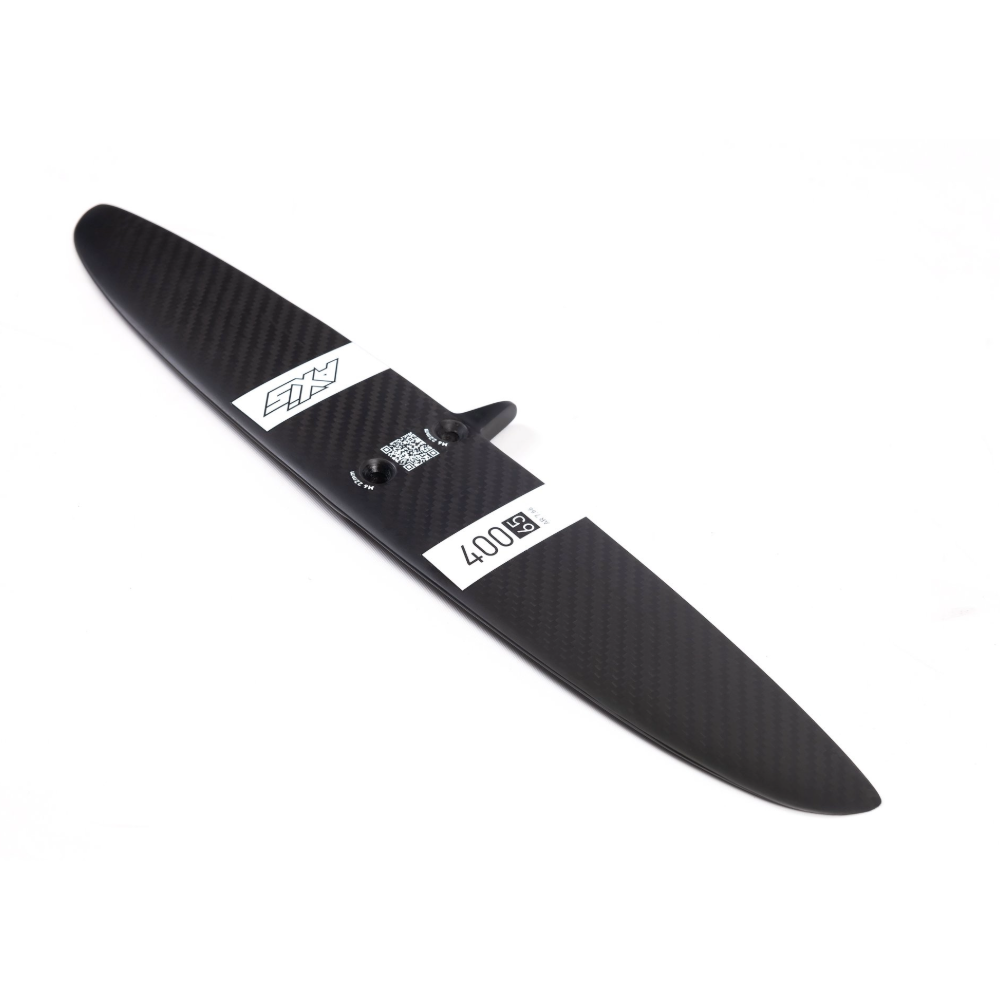

400F

WINGSPAN: 400 mm / 15.75 in  CHORD: 60 mm / 2.36 in ASPECT RATIO: 8.22 ACTUAL AREA : 196.24 cm² / 30.42 IN²  PROJECTED AREA: 194.66 cm² / 30.17 IN²  VOLUME: 70.77 cm³ / 4.32 IN³
