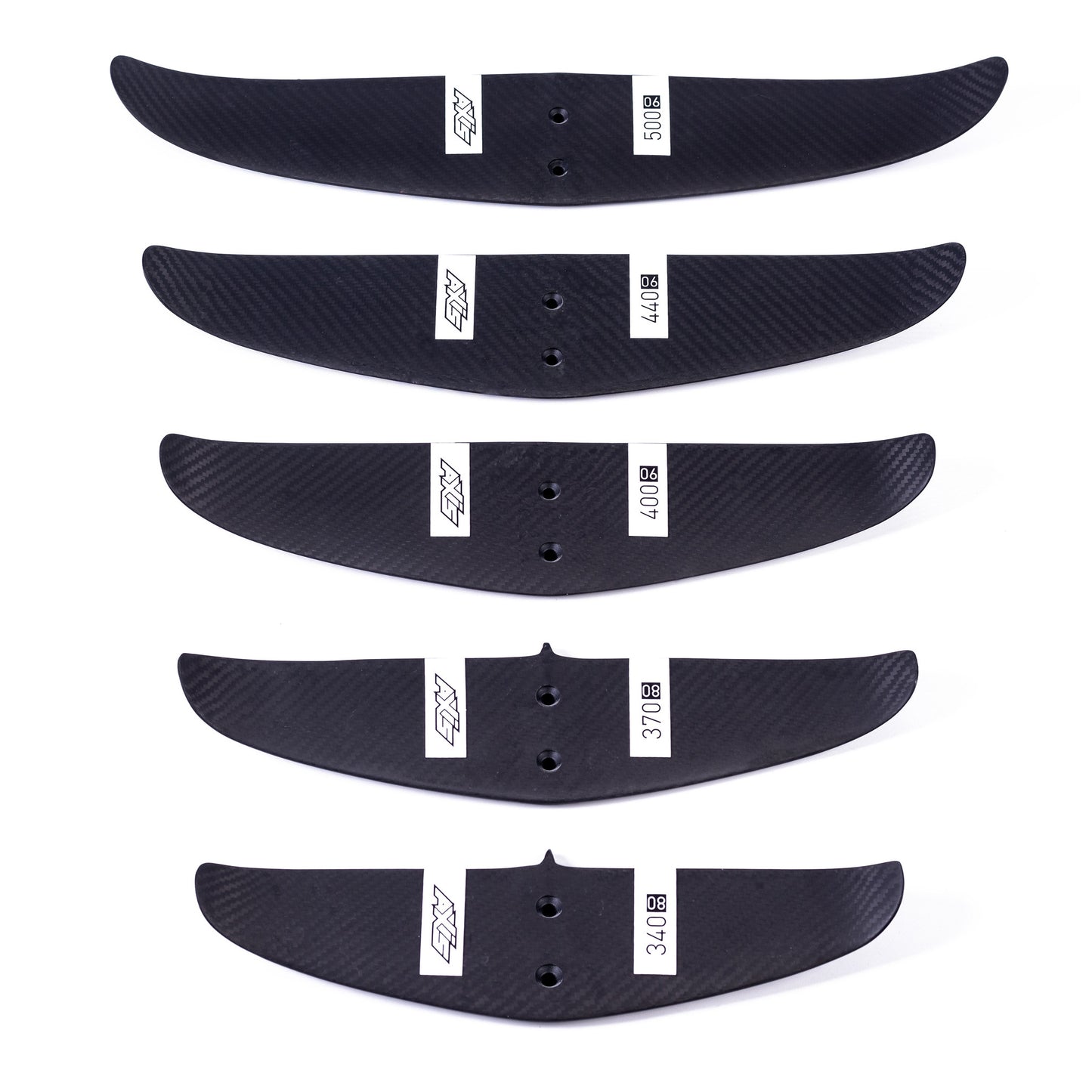

AXIS Foils Rear Wings - Freeride

500, 440, 400,  390, 370, 340

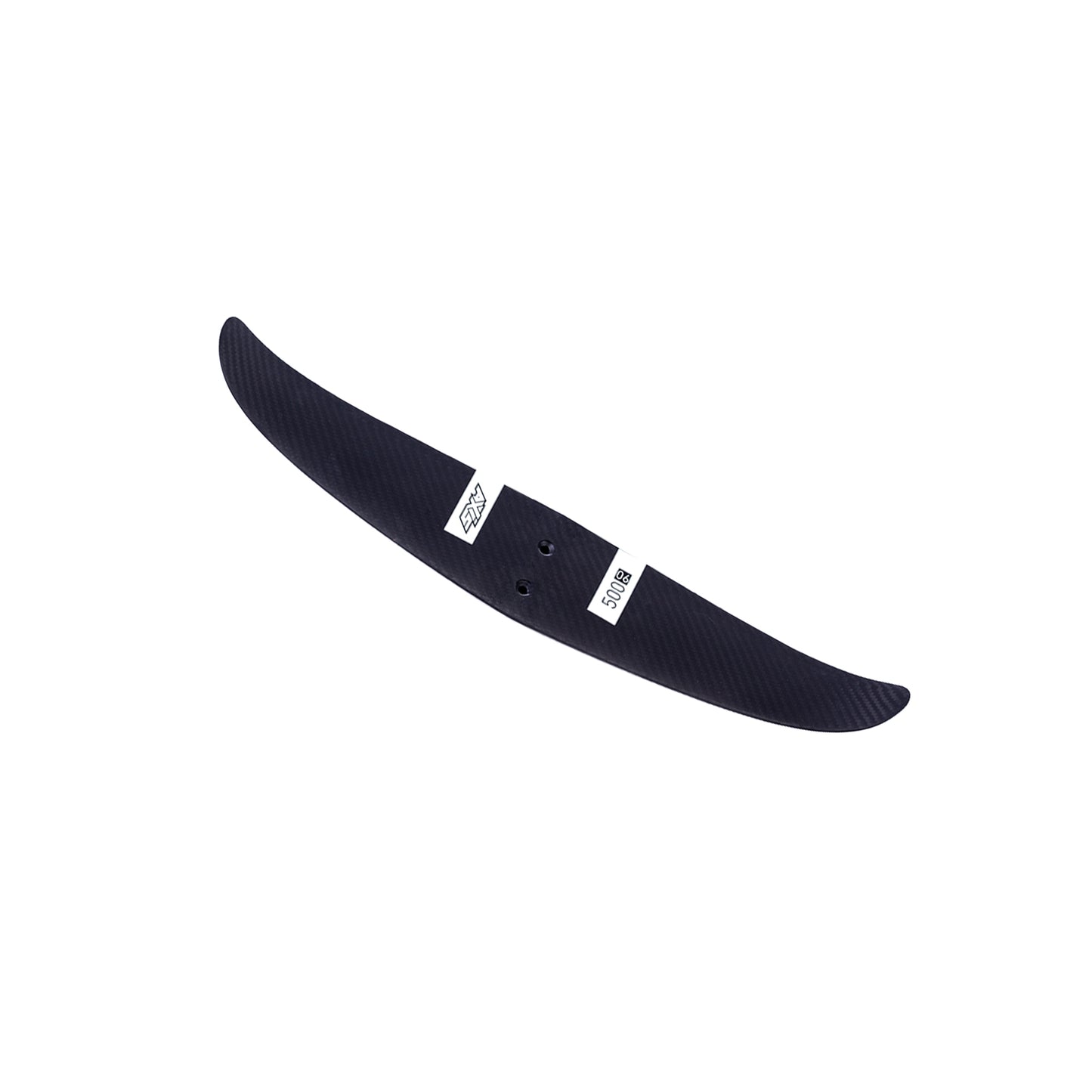

500

The AXIS 500 Carbon Rear Wing is the most stable of our rear wings. Ideal for the entry level and all round riders, the 500 will make your ride as stable as it gets. Suggested as an all round companion to our larger front wings.   WINGSPAN: 500 mm / 19.69 in  CHORD: 90 mm / 3.54 in ASPECT RATIO: 7.3 ACTUAL AREA : 360.77 cm² / 55.92 IN²  PROJECTED AREA: 342.55 cm² / 214.35 IN²  VOLUME: 130.8 cm³ / 8 IN³

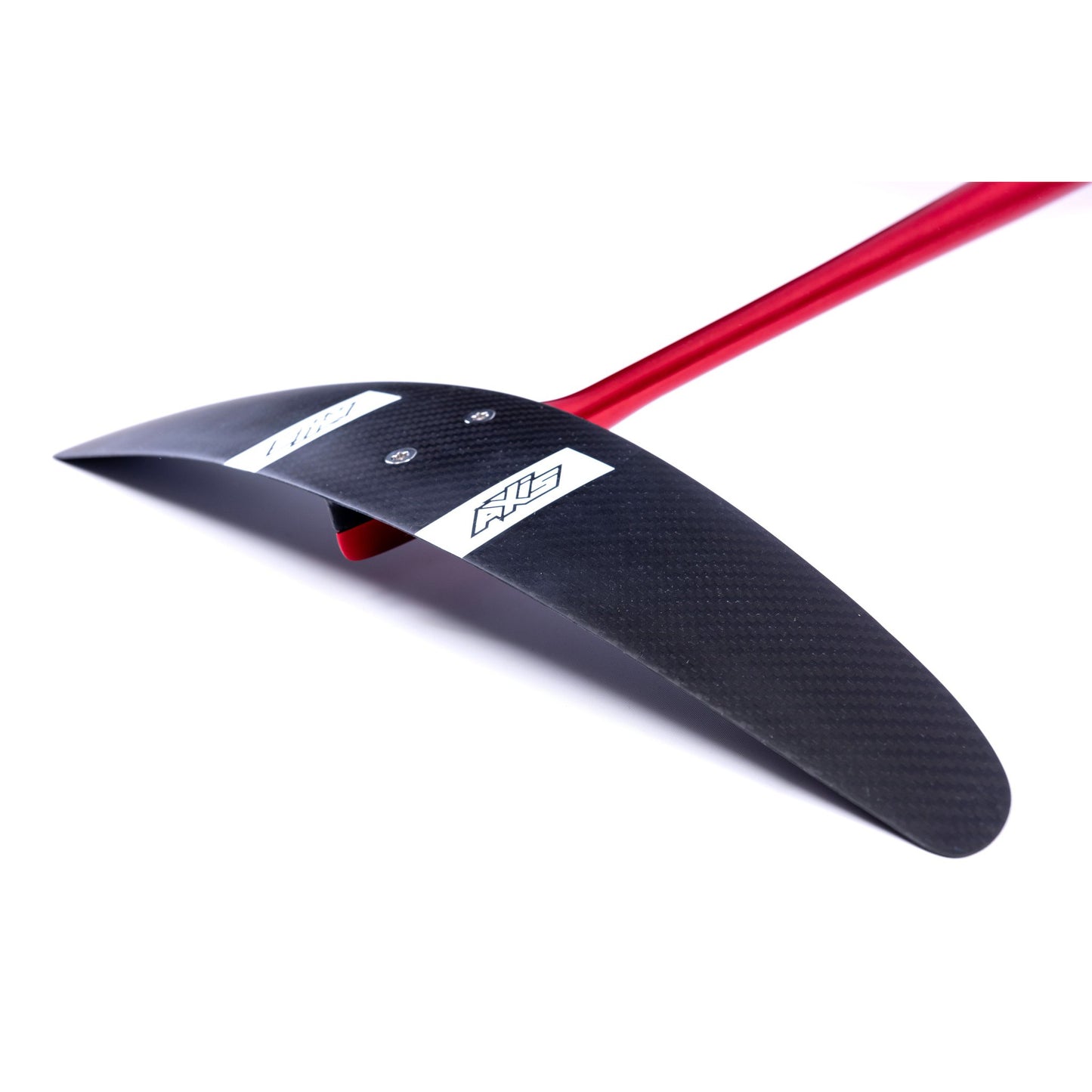

500A

The AXIS 500 Anhedral Carbon Rear Wing, is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.   WINGSPAN: 500 mm / 19.69 in  CHORD: 90 mm / 3.54 in ASPECT RATIO: 7.17 ACTUAL AREA : 362.33 cm² / 56.16 IN²  PROJECTED AREA: 348.72 cm² / 54.05 IN²  VOLUME: 223.43 cm³ / 13.63 IN³

440

The AXIS 440 Carbon Rear Wing is the allround rear wing that does everything well. It feels looser than the 500, it's playful and overall high performing. You can combine the 440 rear wing with either the Standard, Short or ULTRA Short  Fuselages for quicker turning and looser feel.  WINGSPAN: 440 mm / 17.32 in  CHORD: 90 mm / 3.54 in ASPECT RATIO: 6.37 ACTUAL AREA : 318.94 cm² / 49.44 IN²  PROJECTED AREA: 303.97 cm² / 47.12 IN²  VOLUME: 192.81 cm³ / 4.97 IN³

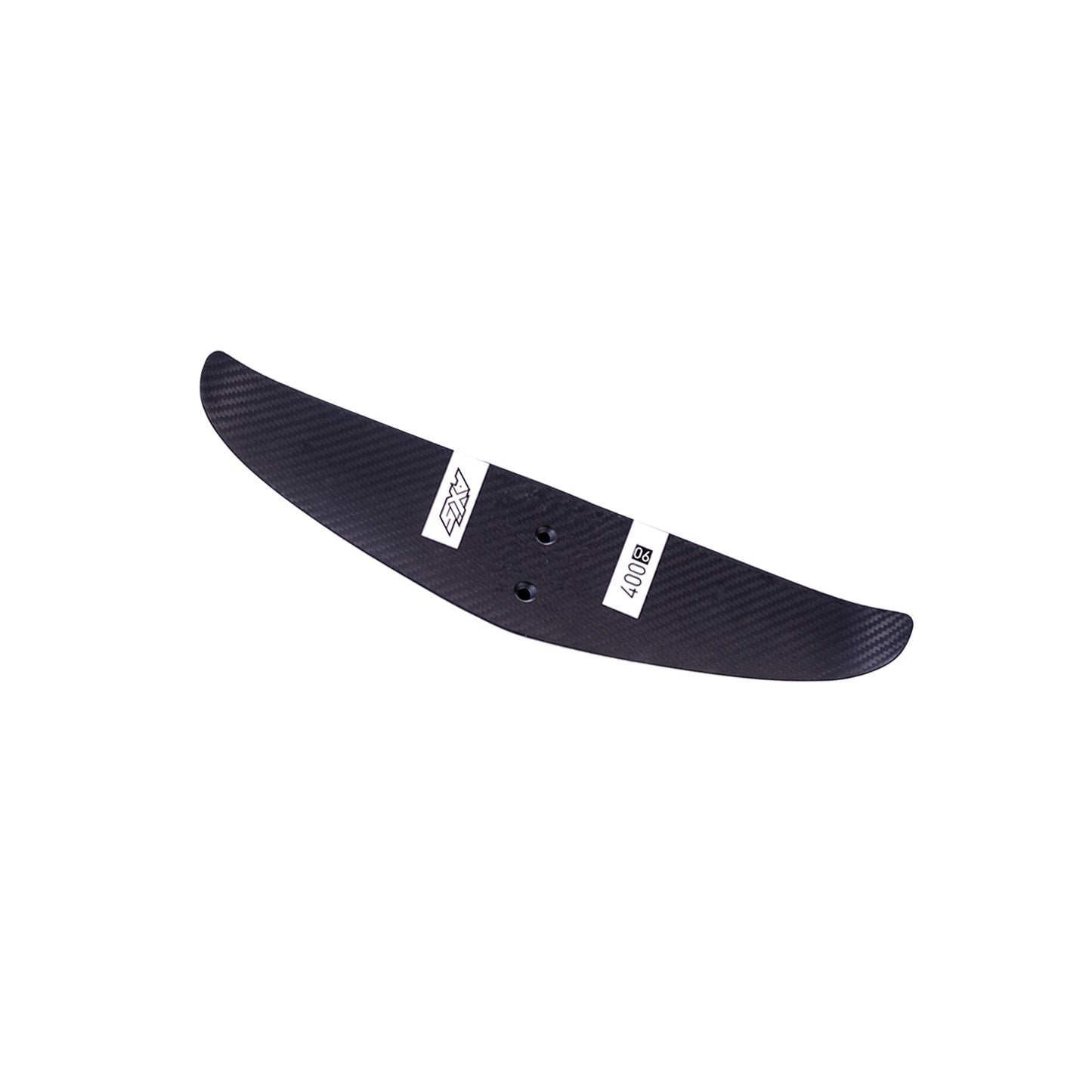

400

The AXIS 400 Carbon Rear Wing is the carving specialist. Even looser than the AXIS 440, it's the most turny and performance oriented rear wing on our collection. And when combined with the ULTRA Short fuselage then your ride gets looser than ever! WINGSPAN: 400 mm / 15.75 in  CHORD: 90 mm / 3.54 in ASPECT RATIO: 5.79 ACTUAL AREA : 291.18 cm² / 45.13 IN²  PROJECTED AREA: 276.54 cm² / 42.86 IN²  VOLUME: 175.35 cm³ / 10.70 IN³

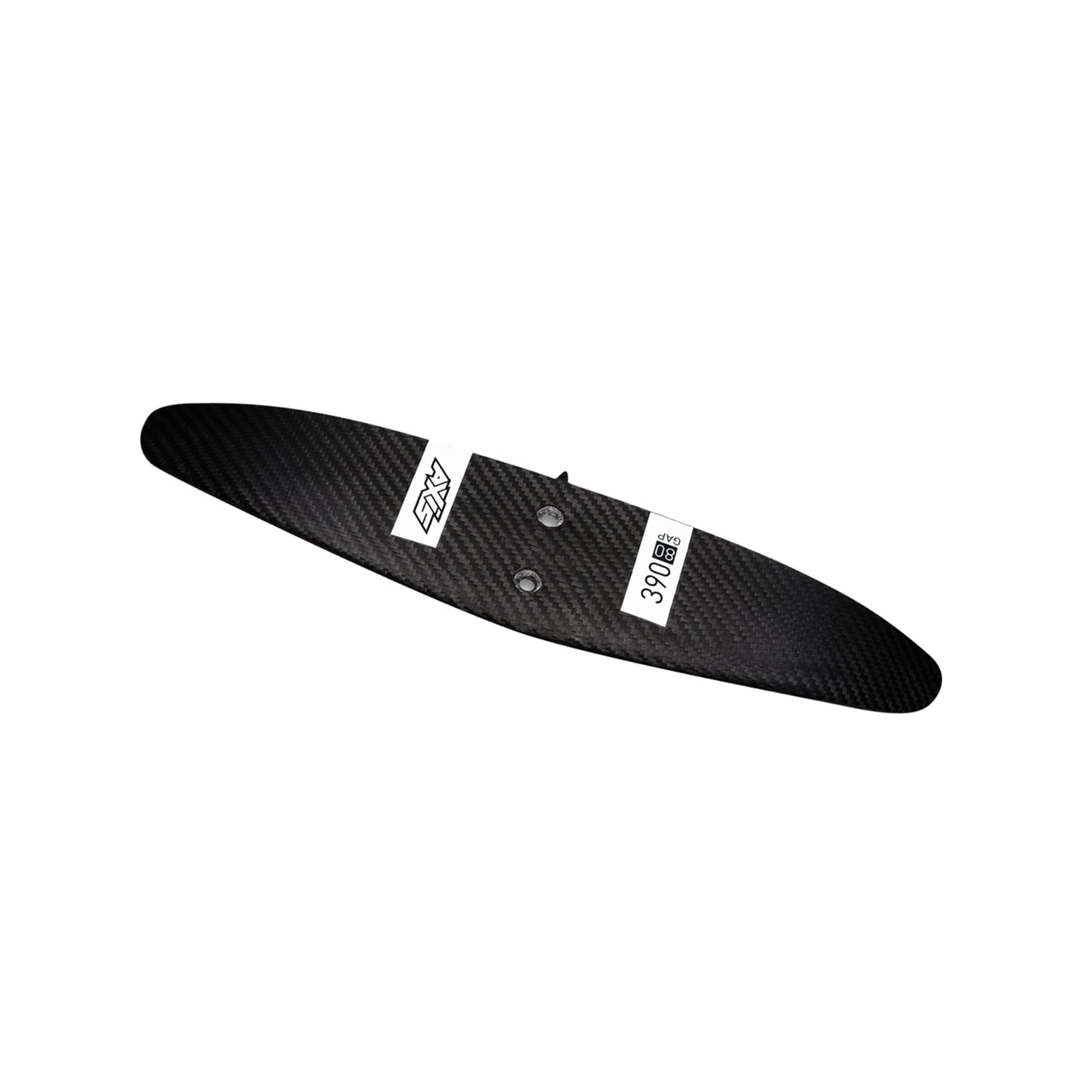

390

The AXIS 390 Carbon Rear Wing is a new rear wing addition from AXIS. Different to our other rear wings, the AXIS 390GAP rear wing has an extensive flat section in the middle, with turned down tips. Many Wing Surfing riders love this rear carbon wing for wing foiling, and it's a great compliment to the 900 HA and 1000 HA Carbon Front Wings, for wing surfing. It adds a bit of extra glide and lift, while enhancing turning and cruising control.    WINGSPAN: 390 mm / 15.35 in  CHORD: 80 mm / 3.15 in ASPECT RATIO: 6.23 ACTUAL AREA : 254.52 cm² / 39.45 IN²  PROJECTED AREA: 244.26 cm² / 37.86 IN²  VOLUME: 134.75 cm³ / 8.22 IN³

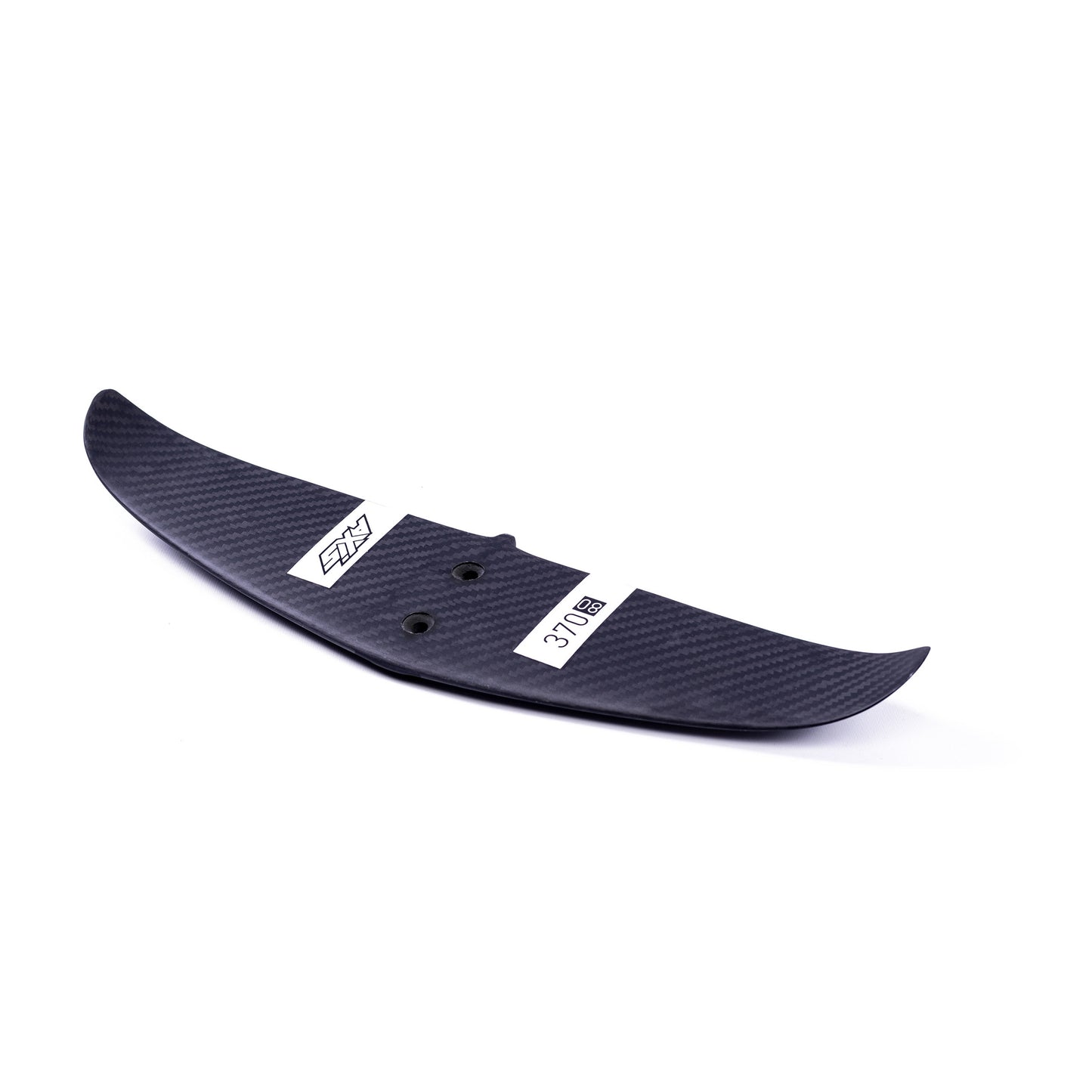

370

The AXIS 370 Carbon Rear Wing is the carving specialist. Even looser than the 400 Rear Wing, it's one of the most turny and performance oriented rear wing on our collection. A must have with the 750, 680 and 660 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing. And when combined with the ULTRA Short fuselage then your ride gets looser than ever! WINGSPAN: 370 mm / 14.57 in  CHORD: 90 mm / 3.15 in ASPECT RATIO: 6.01 ACTUAL AREA : 239.54 cm² / 37.13 IN²  PROJECTED AREA: 227.61 cm² / 35.28 IN²  VOLUME: 123.28 cm³ / 7.52 IN³

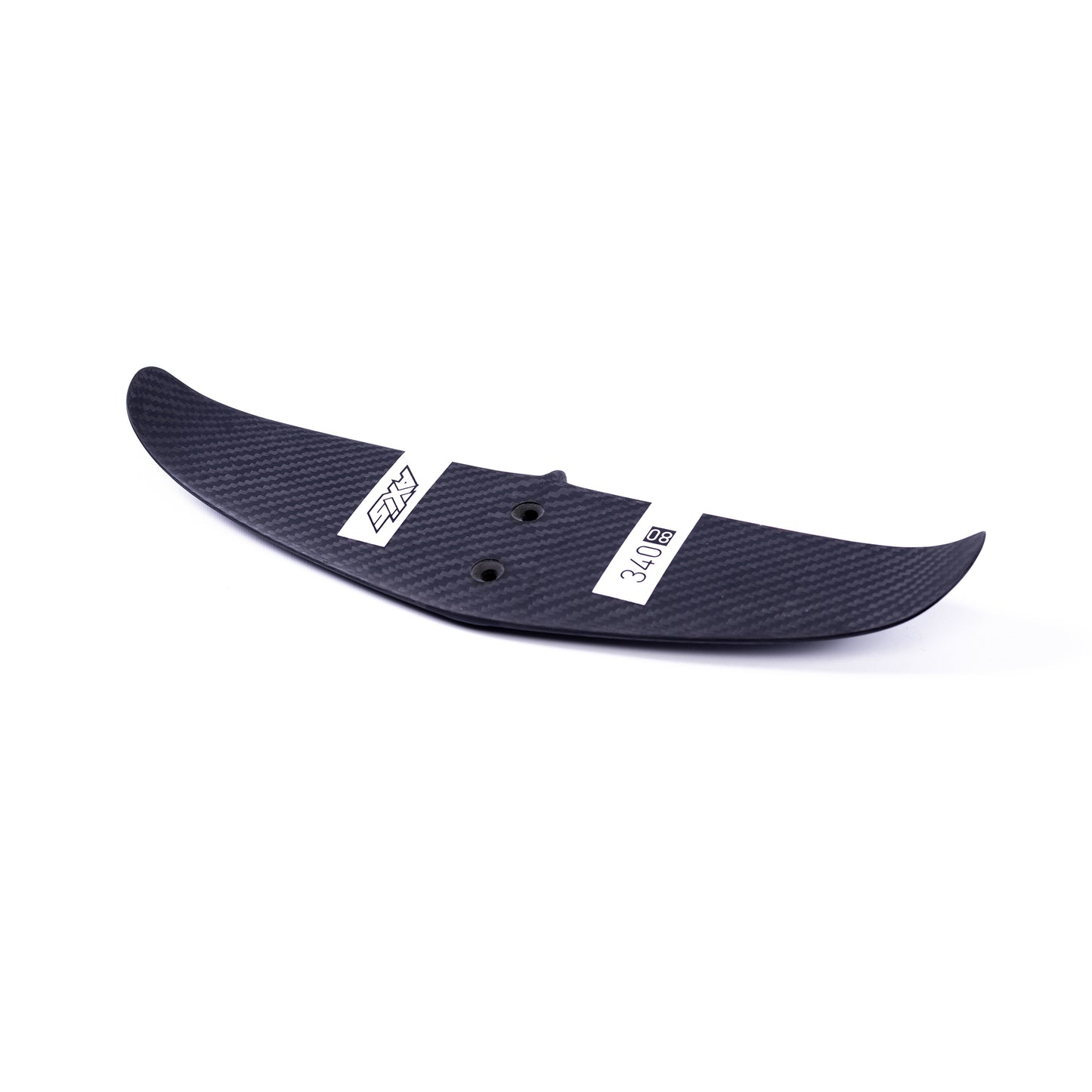

340

The AXIS 340 Carbon Rear Wing is the smallest rear wing we make and compatible with all our fuselages. Super loose, designed mainly for the 600, and 545 wings, but also works well with the 680, 660 wings (for a super loose ride) WINGSPAN: 340 mm / 13.39 in  CHORD: 80 mm / 3.15 in ASPECT RATIO: 5.53 ACTUAL AREA : 221.01 cm² / 34.26 IN²  PROJECTED AREA: 209.13 cm² / 32.42 IN²  VOLUME: 113.21 cm³ / 5.53 IN³
