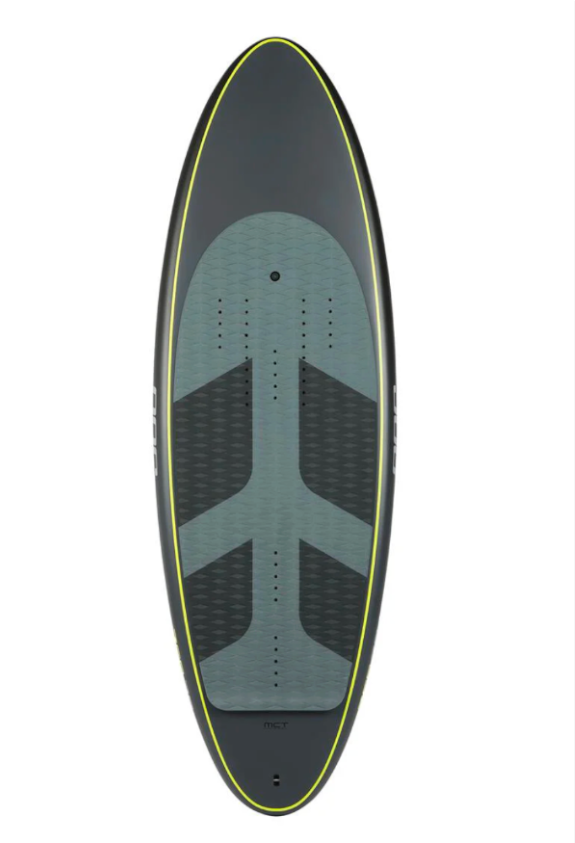

PPC ZEN Mid-Length foil board — plug-moulded carbon construction

How PPC Foil Boards Are Built: Inside Plug-Moulded Carbon

Short answer: PPC builds foil boards using plug-moulded carbon construction — a single-piece carbon shell wrapped around a foam core, formed in custom moulds. The result: lighter, stiffer, more durable boards than typical sandwich-built rivals. Designed and built in New Zealand.

Foil board construction is one of those things nobody talks about until their board delaminates around the foil track. Here's the honest version of why PPC builds the way they do, what plug-moulded actually means, and why it matters for the gear under your feet.

Why construction matters more on foil boards

A surf board takes pressure across its whole bottom evenly. A foil board takes most of its load through one small area: the foil mount. That stress concentration is brutal. A board built to surf-board standards starts delaminating around the foil track within a season or two.

The $3,000 foil board you buy lives or dies on construction. This is where the cheaper imports fail.

The three ways foil boards are built

1. Sandwich construction (cheapest)

Layers of glass and carbon hand-laid over a foam core, vacuum-bagged. Cheaper to produce. Lighter than fibreglass alone. The downside: edge seams are weak, and the layers can separate over time — especially around the foil track.

2. Vacuum infusion (mid-tier)

Foam core wrapped in dry carbon, vacuum-pulled while resin is infused. Better consistency than hand-layup. More expensive. Still has the same multi-layer weakness near stress points.

3. Plug-moulded carbon (what PPC builds)

The foam core sits inside a two-piece female mould. Pre-formed carbon laminate is laid into both halves. The mould closes, resin infuses under vacuum, the whole thing cures as one continuous shell. No seams under stress, no layer-on-layer weakness around the foil mount.

Why PPC went plug-moulded

Three reasons:

  • Durability. The single-piece shell handles the foil-mount stress that breaks sandwich boards.
  • Consistency. Every board comes out of the same mould the same shape. No hand-shaping variability.
  • Strength-to-weight. No wasted resin, no overlapping layers — just the carbon you need, where you need it.

The trade-off: it requires investment in moulds. A new board shape means a new mould — weeks of tooling time and real cost. PPC accepts that trade-off because the boards last.

The construction process, step by step

  1. Design and CAD. Board shape designed and refined digitally.
  2. Mould tooling. CNC-machined two-piece mould (top and bottom halves) built once per shape.
  3. Foam core. High-density foam core CNC-cut to the inner shape, with reinforcement around the foil track and footstrap inserts.
  4. Carbon layup. Pre-cut carbon sheets laid into both mould halves — multiple layers, weave directions tuned for stiffness and impact resistance.
  5. Mould closure. Foam core inserted, mould halves brought together.
  6. Resin infusion + cure. Resin pulled through the laminate under vacuum, then cured under heat. Single continuous shell forms around the core.
  7. Demould + finish. Board comes out of the mould near-finished. Edges trimmed, foil track and inserts installed, painted, sealed.

How to spot the difference

You can identify a plug-moulded board if you know what to look for:

  • Seamless rail line. No visible glass seam running around the rail. Plug-moulded boards have one continuous surface.
  • Sharp, consistent rails. The mould controls the rail shape exactly. Hand-laid boards round off slightly over time.
  • Even, consistent weight. Two boards of the same size weigh within grams. Sandwich boards vary 50g+.
  • Solid tap test. Tap the deck near the foil track. Plug-moulded = solid thunk. Sandwich = slightly hollow.

The PPC range built this way

Every PPC board on the rack uses plug-moulded carbon construction:

See the full PPC foil boards range.

Why this matters when you're shopping

Foil boards take a beating. The price difference between cheap sandwich construction and a plug-moulded carbon board is usually $500–800 NZD. Spread over 3–5 seasons of riding, that's pocket change — and you avoid the "delaminating board, do I bother repairing or just replace" decision two summers from now.

Common questions

Are PPC boards made in NZ?

Yes — designed and built locally by the PPC team.

How long should a PPC board last?

3–5+ seasons of regular riding with normal care. We've seen boards still riding well after 6+ years.

What about repair if I do ding one?

Plug-moulded boards are repairable like any composite board — epoxy, glass, careful sand and finish. We can recommend local repairers.

Is plug-moulded heavier than sandwich?

No — typically the same or lighter. The single-piece shell uses less resin than overlapping layers do.

Why don't all foil boards use plug-moulded construction?

Tooling cost. Every new shape needs a new mould. Brands shipping dozens of small-run shapes go sandwich because tooling is too expensive at low volumes.

Does construction matter more than shape?

Both matter. Shape determines how the board rides today. Construction determines whether it still rides like that in 3 years.

Want to see one up close?

Come into the Takapuna store and pick up a PPC board. The construction is one of those things you understand the moment you hold one.

Construction details based on PPC's published build process. Specific layup details vary by board model.
