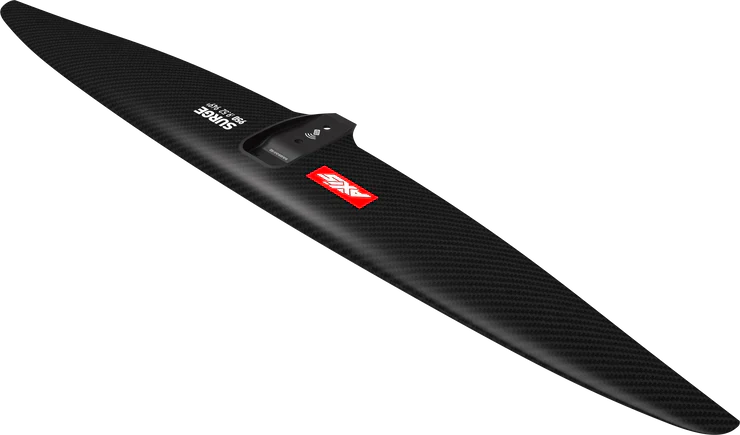

Hydrofoil front wing — the lift surface of your foil

Front Wing Size Explained: Lift, Speed & Glide (NZ Guide)

Short answer: front wing area in square centimetres (cm²) determines how much lift you get. Bigger area = more lift, easier learning, slower top speed. Smaller area = less lift, more speed, more aggressive turns. Match area to your weight, skill, and what you're riding.

The front wing is the heart of your foil — the bit that does the lifting. Size it wrong and the rest of your gear can't compensate. Sized right, foiling feels effortless. Here's the honest framework for picking yours.

What is a front wing?

Your hydrofoil has four parts: front wing (the big lift surface up front), stabiliser (the smaller rear wing for control), fuselage (connects them) and mast (drops down to the board). The front wing does about 80% of the work. Pick it first, build the foil around it.

How front wings are measured

Three numbers matter:

  • Area (cm²) — the surface area of the wing. Determines raw lift. Range: 600cm² (race) to 2200cm² (super-beginner).
  • Span (cm) — wingtip to wingtip. Longer span = more glide, less turning.
  • Aspect ratio — span² ÷ area. Higher ratio = more efficiency and glide, less low-speed lift and turning. Lower ratio = more turning agility, easier low-speed flight.

Size chart: area by rider weight × skill (wing foiling)

Rider weight Beginner area Intermediate area Advanced / wave area
Under 60kg 1300–1600 cm² 1000–1300 cm² 800–1000 cm²
60–80kg 1500–1800 cm² 1200–1500 cm² 900–1200 cm²
80–95kg 1700–2000 cm² 1300–1700 cm² 1000–1300 cm²
95kg+ 1800–2200 cm² 1500–1900 cm² 1200–1500 cm²

Numbers shift down 100–200cm² for high-aspect race foils, up by similar amounts for low-aspect surf foils.

Area vs aspect ratio — what gives

Wing area (cm²)

The dominant factor. More area = more lift at lower speed. Easier to get up. Easier to stay up at slow speeds. Wave riders pumping back out to the next set love area. Speed merchants chasing top end hate it.

Aspect ratio

Higher aspect (long thin wings) = more efficiency, more glide, more top speed, less turning agility, harder to start. Best for: downwind, racing, pump-and-glide.

Lower aspect (short fat wings) = more low-speed lift, more turning bite, less glide, easier learning. Best for: wave riding, freestyle, beginner.

Mid aspect (the do-everything range): the sweet spot for most wing foilers.

By discipline

Wing foiling (general)

Mid-aspect, 1200–1800cm² for most riders. Forgiving, easy to learn, plenty of glide.

Surf foiling

Lower aspect, 800–1300cm². You want fast turning bite and the ability to drive through carves.

Downwind

High aspect, 800–1100cm². Maximum glide between bumps is the whole game.

Race

Very high aspect, 600–900cm². Top speed wins. Beginners stay away.

Pumping / lightwind

High aspect, 1200–1700cm². Combines glide with enough area for low-speed lift.

The PPC and Axis lineup at NZ Foil Centre

PPC SES front wings (in the SES Package):

  • SES 1040 (1040cm²) — beginner who wants room to grow
  • SES 940 (940cm²) — beginner-intermediate who's progressing fast

Axis range — the broad spectrum:

  • Axis Tempo — mid-aspect all-rounder, great progression range
  • Axis Fireball — race-bred, high aspect
  • Axis Spitfire — high-aspect performance
  • Axis ART (Axis Research Team) — all-round mid-aspect
  • Axis PNG (Pump and Glide) — pump-and-glide specialist
  • Axis HPS (High Performance Speed) — the speed wing

See the full front wings range for sizes, prices and details.

Common mistakes

  • Going too small too soon. Smaller wings need more speed and skill. Beginners on a 900cm² spend months not foiling. Beginners on a 1600cm² fly within sessions.
  • Buying for the rider you want to be. A race foil bought today by a beginner = a year of frustration. Pick for who you are now.
  • Forgetting aspect ratio. Two 1200cm² wings can feel completely different. Aspect ratio explains why.
  • Ignoring stabiliser pairing. Front wing area + stab area = total system. Don't mismatch them.

Common questions

How many front wings will I end up owning?

Most riders end up with 2–3 over the first couple of years. One bigger for lightwind/learning, one mid for everyday, one small for top end. The Axis Tempo range is popular because one fuse + multiple front wings = whole quiver.

Could I swap front wings within the same system?

Yes — that's why modular foil systems exist. Buy one mast, one fuse, and grow your front wing collection. Most quality systems (Axis, Code) work this way.

Why are PPC foils sold as complete packages and Axis sold piece by piece?

Different audiences. PPC's SES package is a no-decision beginner kit. Axis is for riders who want to mix and match. We stock both because they suit different stages.

How important is the brand, really?

Build quality matters a lot. Stiffness, finish, mounting consistency — these vary by brand. Axis and PPC are the brands we trust at NZ Foil Centre because they hold up.

Are bigger wings safer?

For beginners, yes — they lift sooner and you crash slower. For pros pushing tricks, no — bigger wings need more space and have more momentum if things go wrong.

Ready to pick yours?

Sizing ranges based on real-world feedback from NZ riders. Individual technique, foil setup and board pairing all affect what feels right — when in doubt, demo a couple of sizes back-to-back.
